Custom controls for 1 Channel Analog Controller

Overview

The 1-Channel Analog Controller helps users easily control the brightness of analog lights or devices. It allows scheduling, grouping, and brightness adjustments, all through a simple and user-friendly interface.

---

Key Features :

Feature	Description
Brightness Control	Adjustable from 0% to 100% via slider
Scheduling	Date-based, full-year setup
Grouping	Control by device or logical group / Virtual groups
Preview	Real-time testing before activation
Firmware Updates	Connect & Update to use latest Firmware

1. Navigation & Access

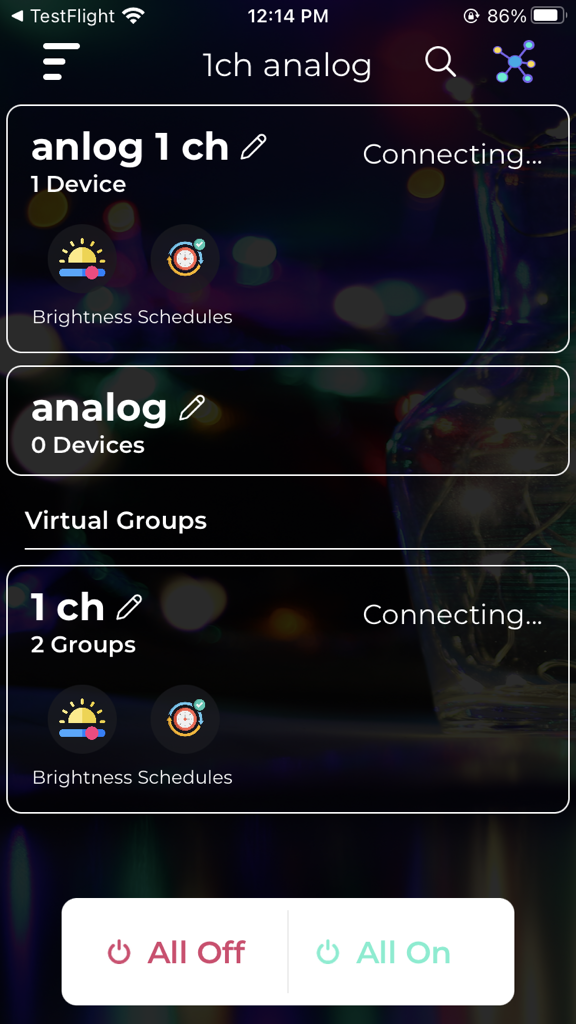

Step 1: Open the App

• Launch the app on your device.
• Makesure 1 channel analog is paired
• Navigate to the "1ch analog" group from the home screen

• Icon include : Brightness & Schedules in 1 channel analog group

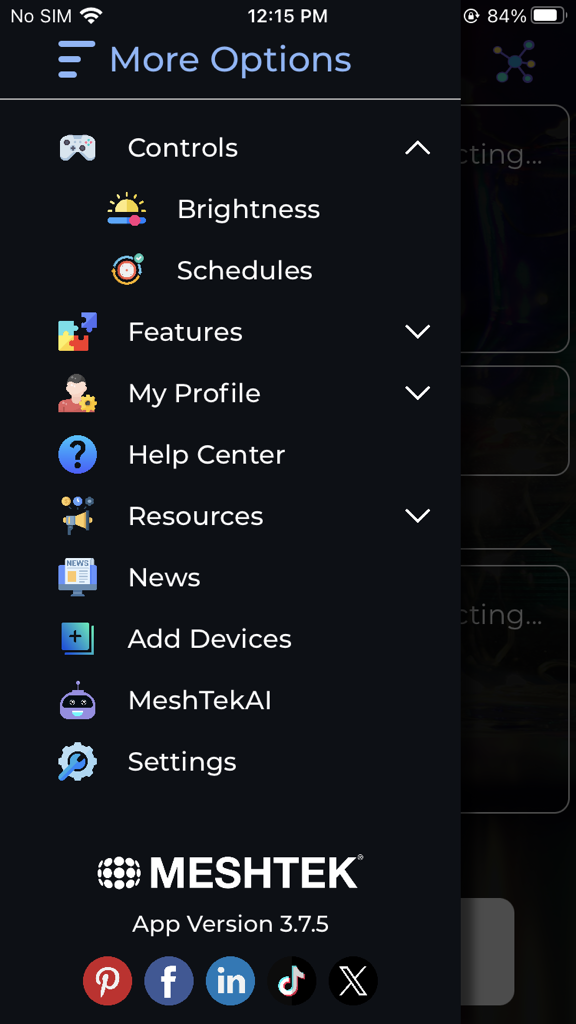

Step 2: Access More Options

• Tap the menu icon to open the side navigation bar.

• In controls Options include: Brightness, Schedules.

.

2. Control Functionality

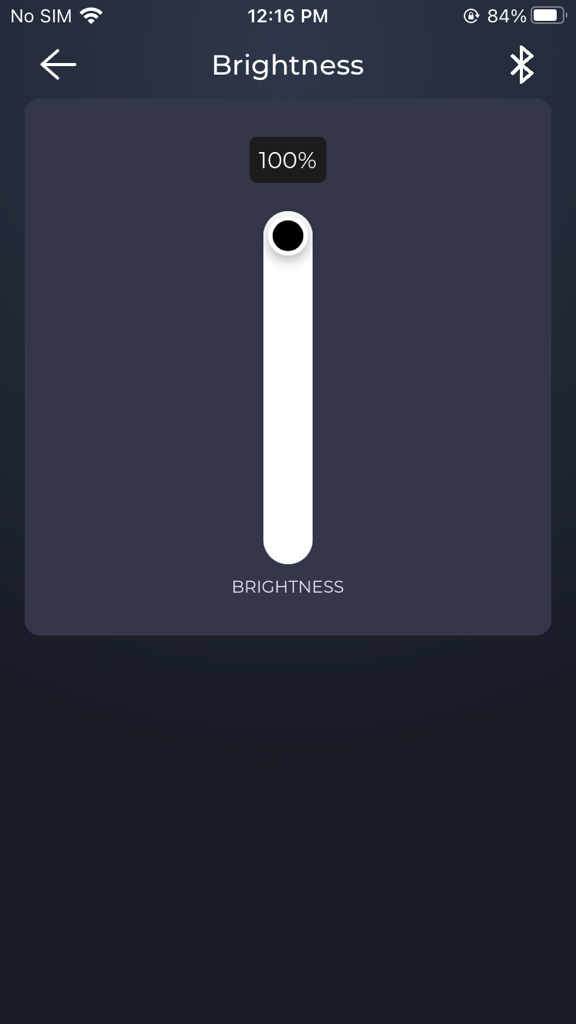

2.1 Manual Brightness Adjustment

• Access the Brightness screen.
• Use the vertical slider to set brightness from 0% to 100%

2.2 Automated Scheduling

• Scheduling brightness control within a set date range, allowing users to select the exact time for changes.

.

3. Creating a Brightness Schedule

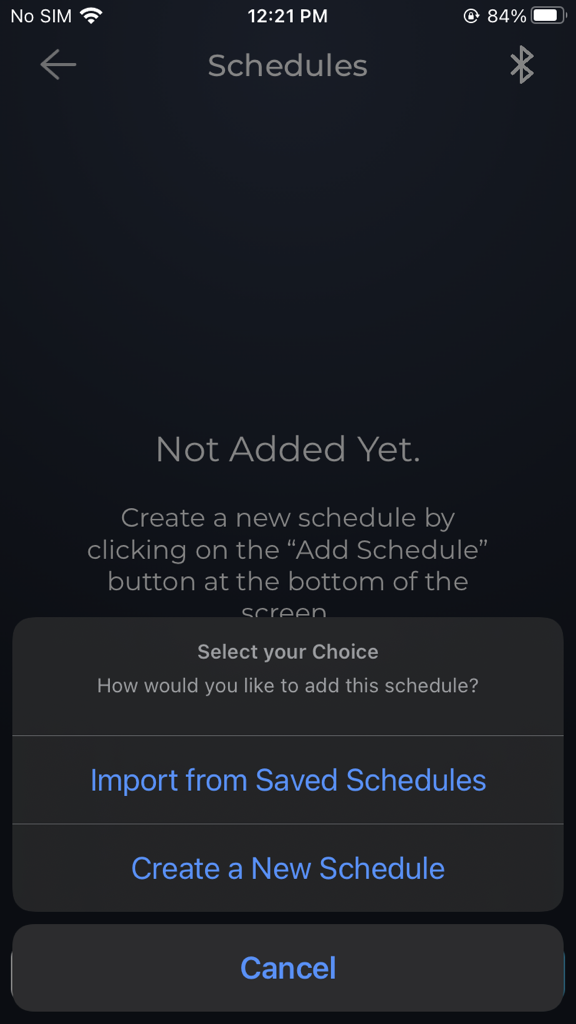

Step 1: Start Schedule Setup

• From the "Schedules" tab, tap on "Add Schedule".
• Choose "Create a New Schedule" or select from saved schedules.

Step 2: Select Schedule Type

• Under the "Add to Schedule" screen, select "Brightness".

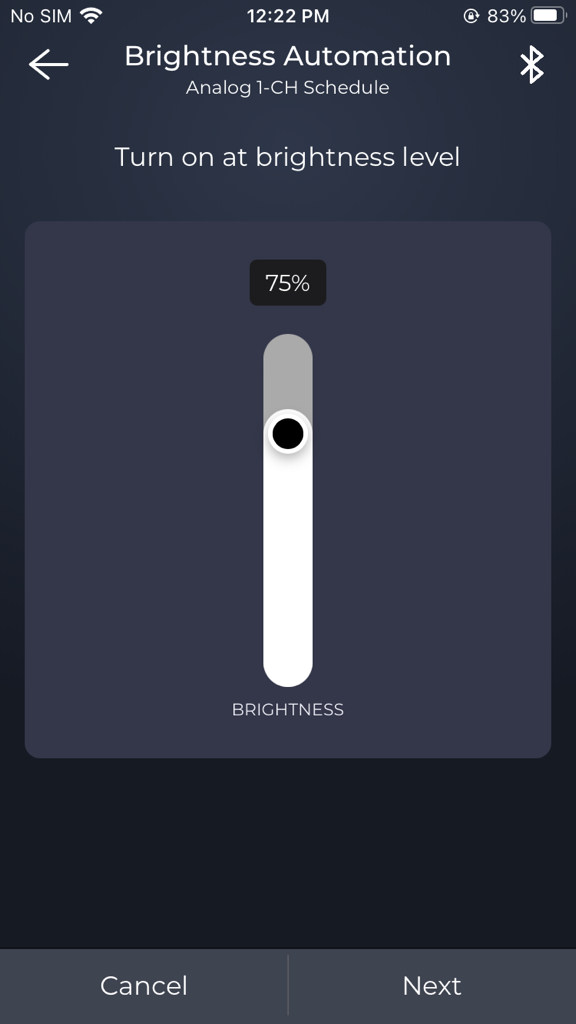

Step 3: Set Brightness Level

• Adjust the brightness level using the vertical slider.
• Tap Next once the desired brightness is set.

.   .

4 and 5. Setting Duration and Time

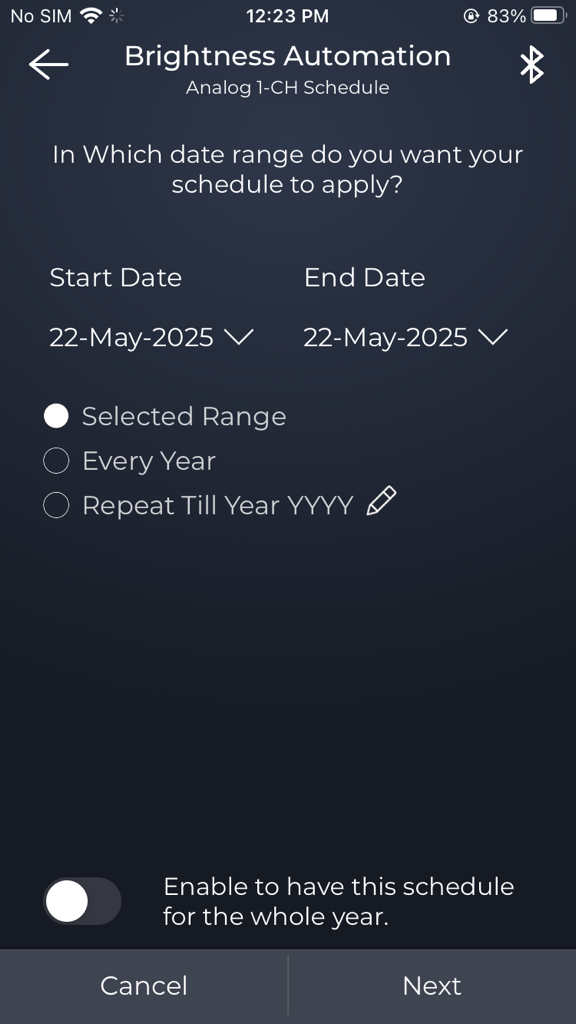

Step 4: Choose Date Range

• Select the start and end dates for the Schedule
• Options include:
  • Selected Range
  • Every Year
  • Repeat Till Year (custom)
• You can enable the schedule to run for the full year by toggling the switch.

Step 5: Choose Time

Choose a scheduling trigger:

• Dusk (adjust brightness at sunset).
• Dawn (adjust brightness at sunrise).
• Specific Time (set a custom brightness adjustment time).

.

6. Review & Create Schedule

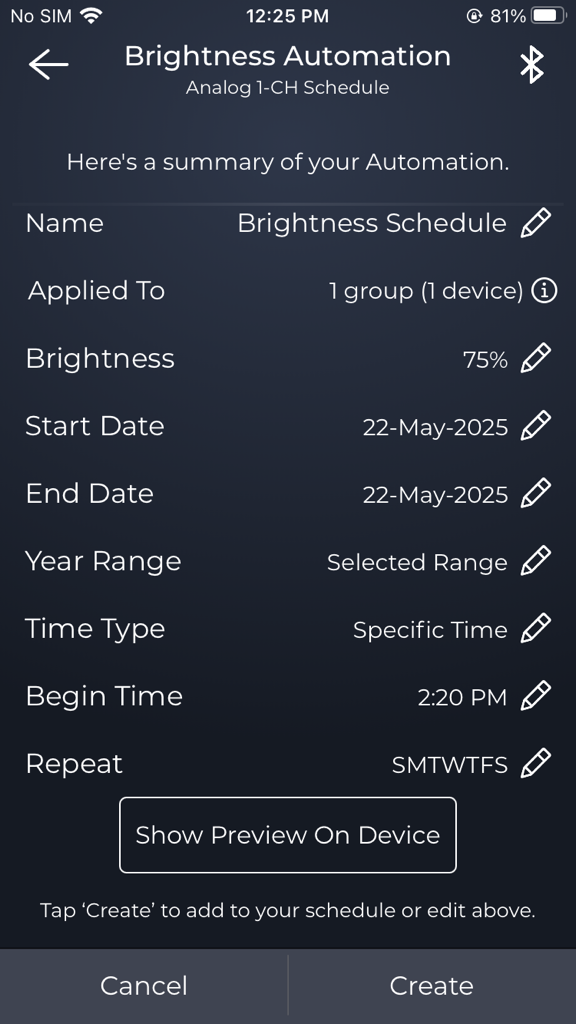

Step 6: Review schedule Summary

• The summary includes:

  • Name of the schedule
  • Brightness value
  • Applied groups/devices
  • Date range
  • Year type (Selected, Every, Repeat)
  • Time type
  • Begin time
  • Repeat pattern
• Show preview on the device.
• Tap Create to activate the schedule.

.

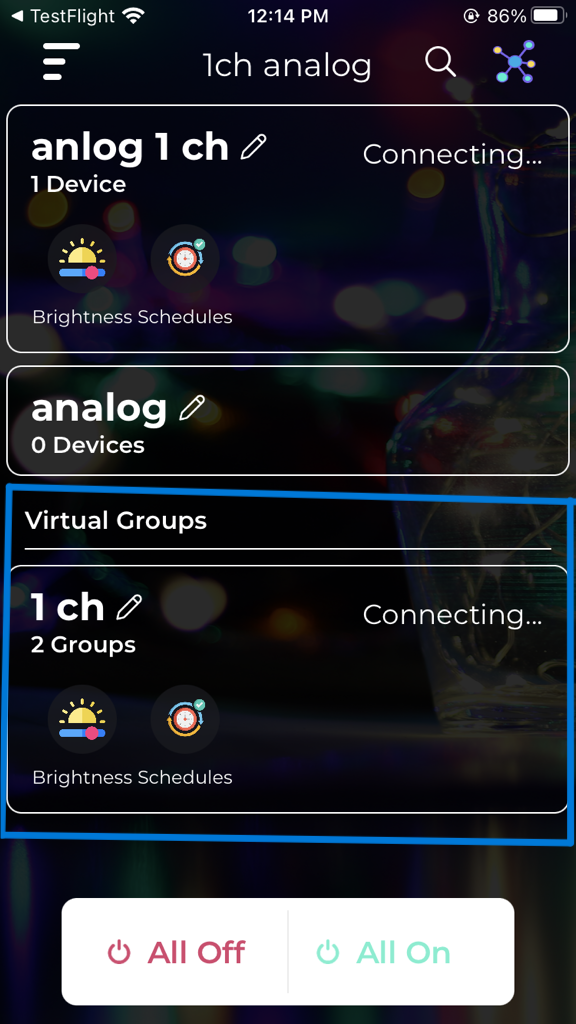

Virtual Groups in 1-Channel Analog Controller

Virtual Groups let users group multiple devices together for easy control. They sync brightness and scheduling across all channels.

How to Use Virtual Groups:

1. Create a Group: Navigate to the Virtual Groups section and add devices.
2. Adjust Brightness: Use the Brightness slider to modify the group's settings.
3. Set Schedules: Set brightness schedules for all devices in a group.
4. Monitor Connection Status: Ensure all devices in the group are properly connected.

.

.



---

If you have any questions, please reach out to us at [e-mail] and we'd be happy to help.
