Scenes at group level

Scene Feature

Using the scenes feature, users will be able to save their favorite colors/effects. This feature is available when you have pixels like Nuggets, strips or MR16 bulbs in the network.

1. To create a new scene you need to first apply any colors/Effects from the side menu as you normally would.  Scenes will save the settings of all networked Bluehopper/Meshtek devices as one entity that can be individually named and scheduled.

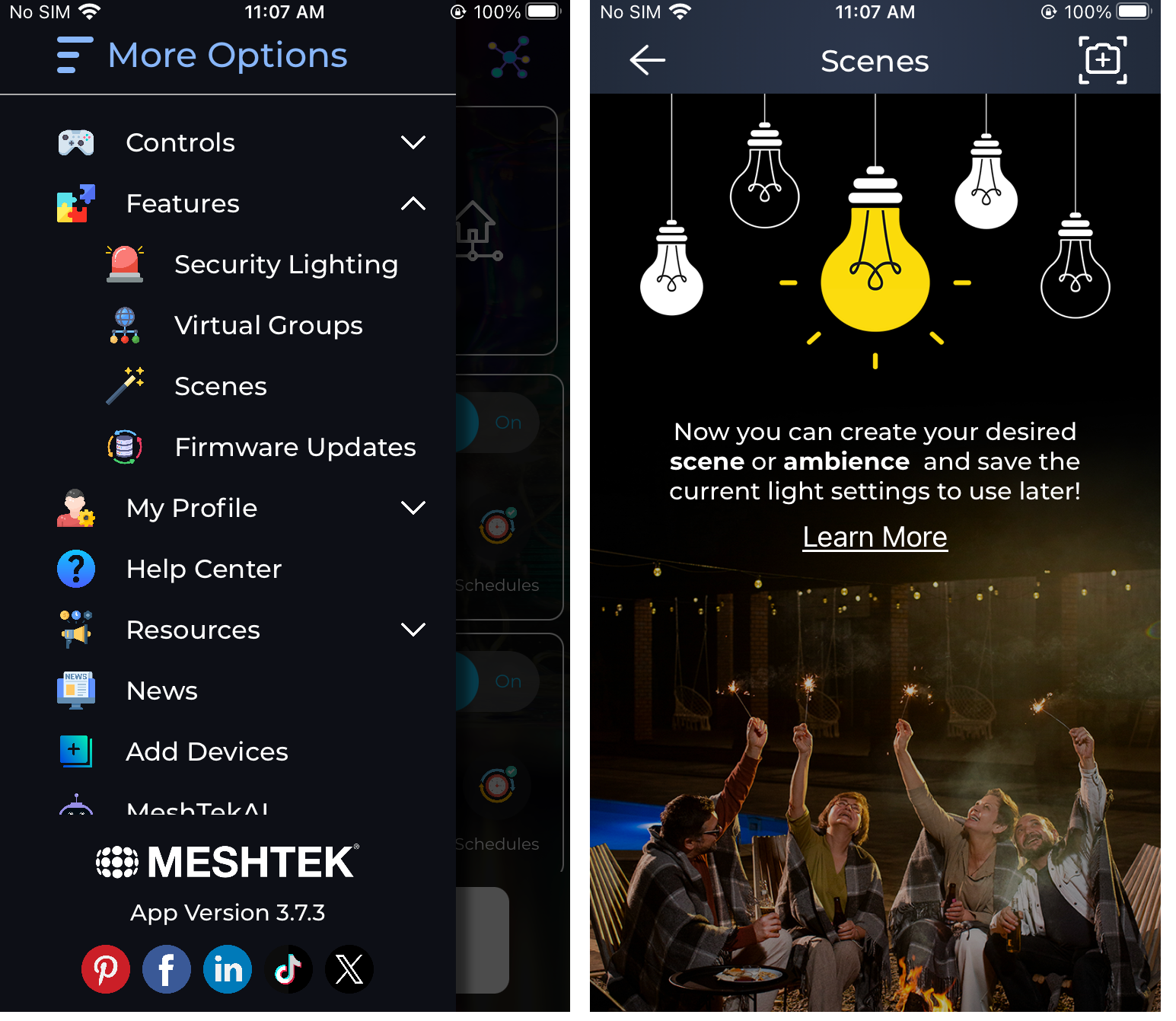

2. From the side 3 line menu Choose the ‘Scenes’ option.

Creating a scene at group level

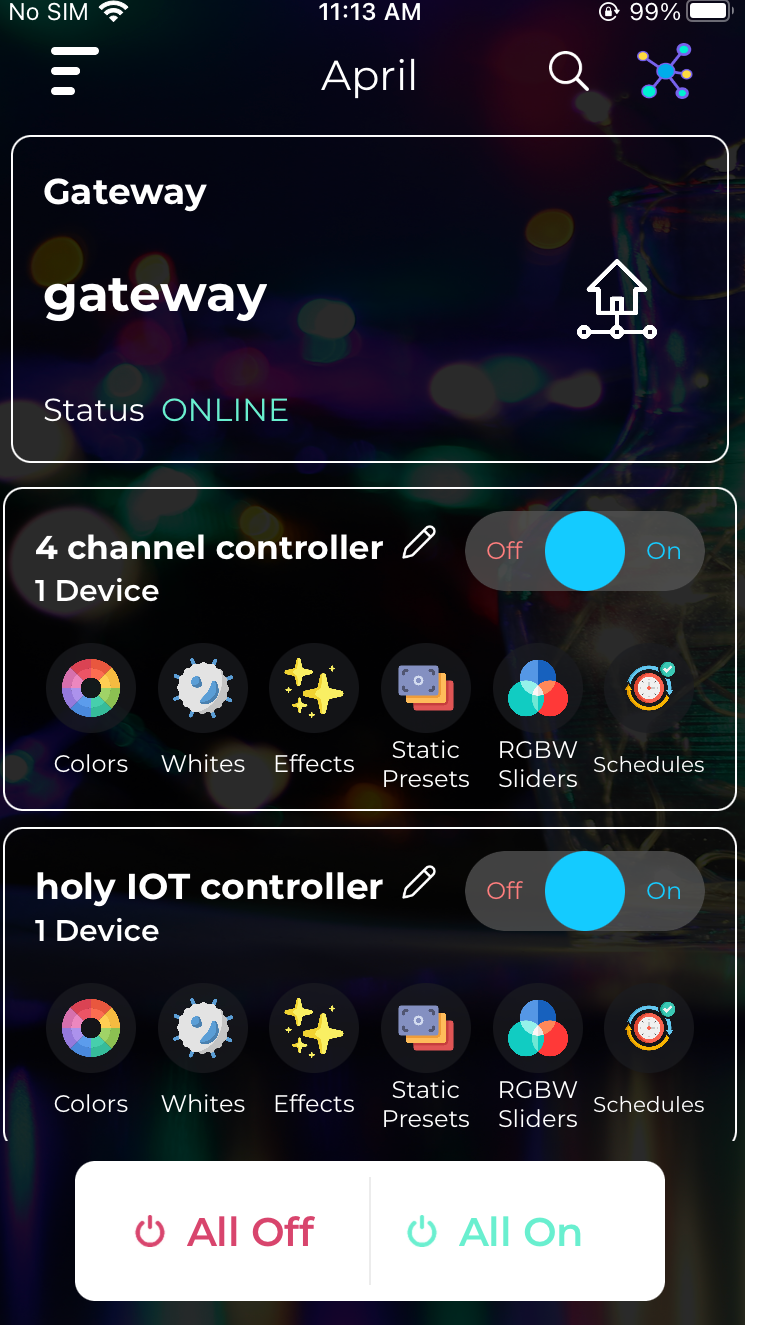

1. To create a scene at a particular group level, using the group level controls apply any Colors/Whites/Effects/Static Presets/Sliders of your choice displayed individually below the group.

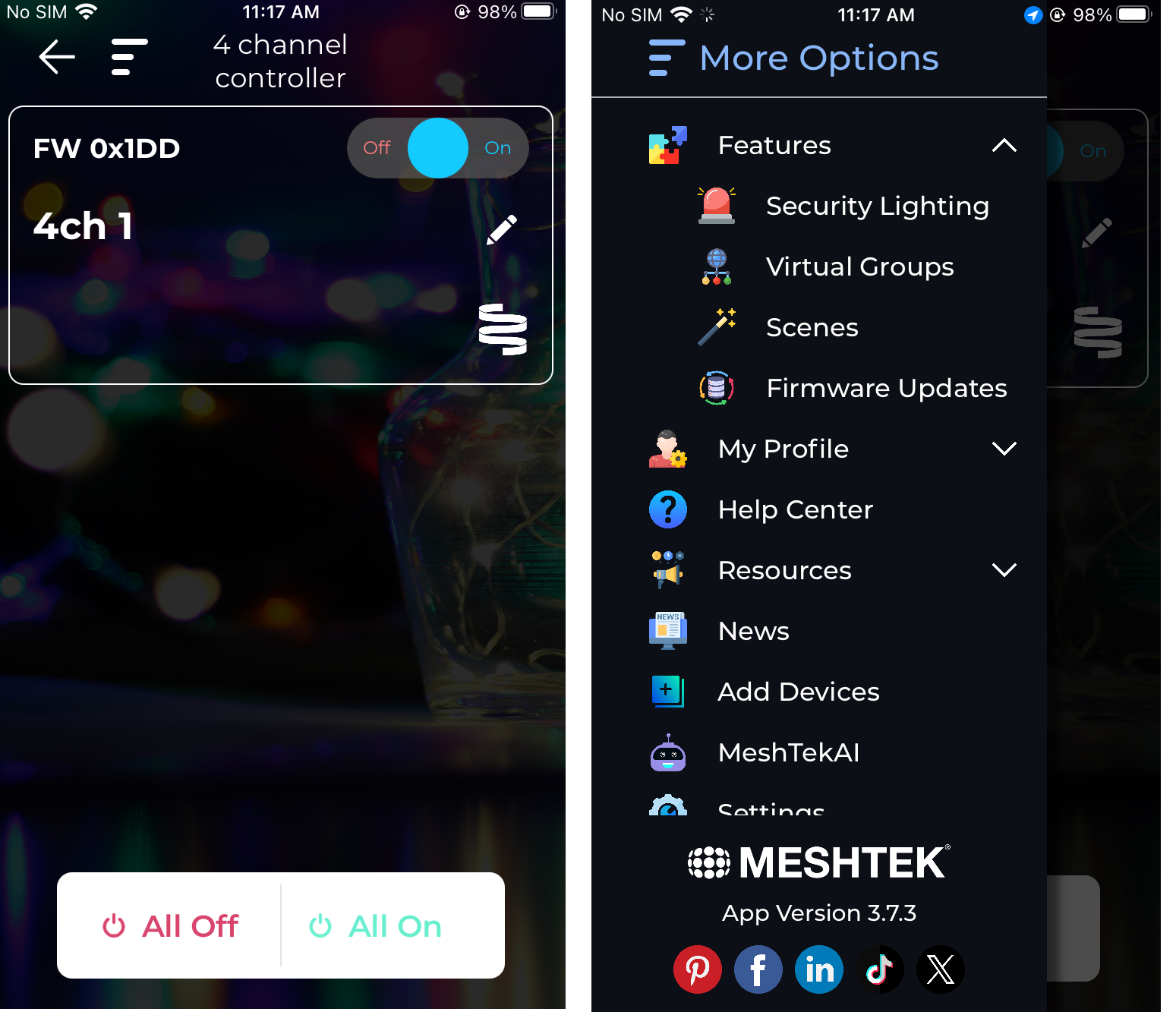

2. Now tap on the group (here for instance 4 channel controller group) . The More Options icon will be visible on the left corner simply  tap on it.
3. From the Features list, tap on ‘Scenes’.



4. From the top right corner of the screen you will see the capture icon.

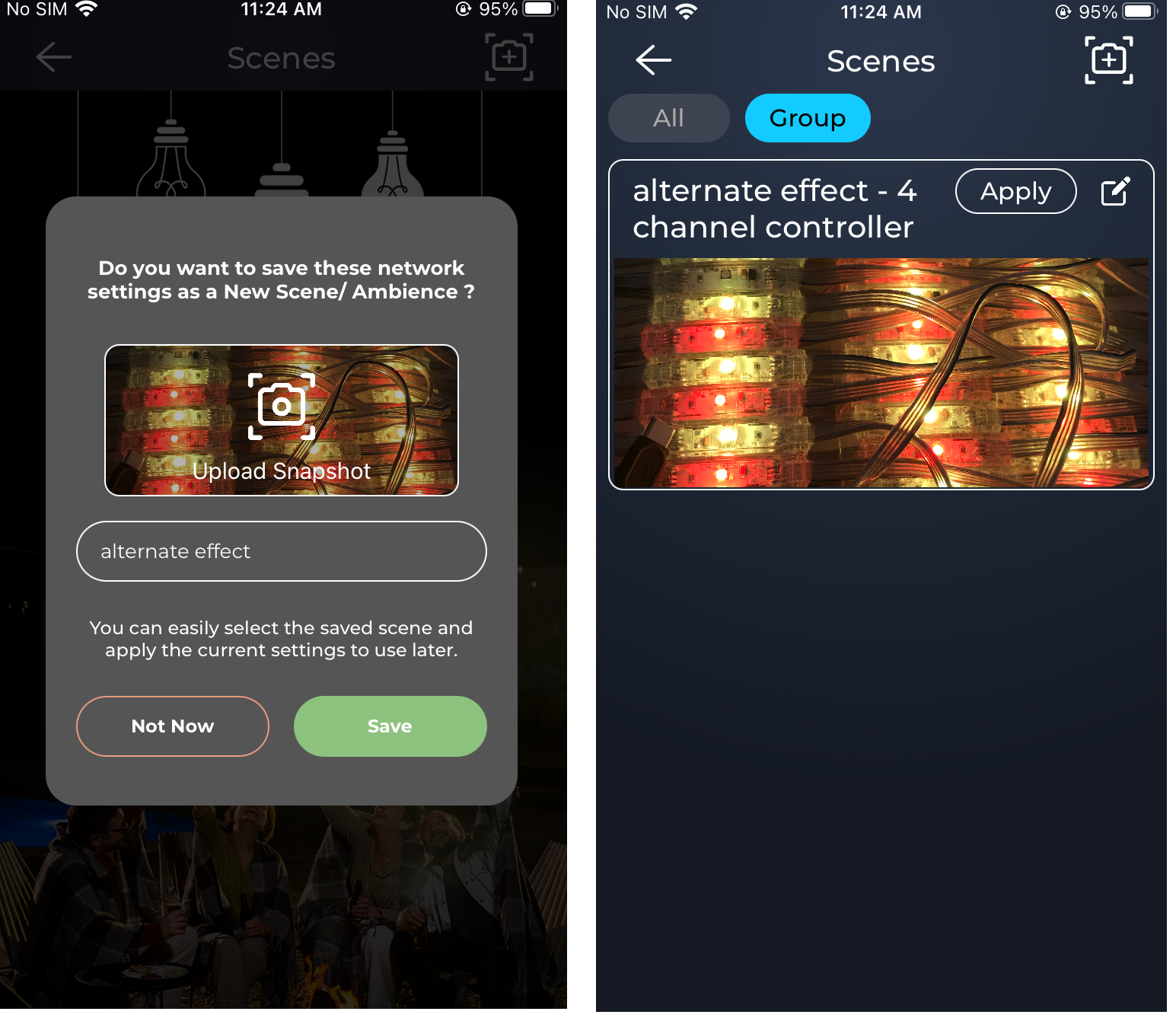

5. Tap on this icon and you will get a dialog box to create a new scene.

6. In the box, you will get two options :

1) Upload snapshot.  Click here to upload a picture to help you remember what the scene looks like

2) Enter scene name and tap Save

3) After tapping on the ‘Save’ button, it will save and display in the list of available scenes.

7. When you tap on group level tab, the recently created scene will be displayed with the scene name and the group name.
8. To apply the scene, you can simply tap on Apply. The scene will be visible in network level also.

Edit,Resave and Delete scene

1. To Edit a scene, tap on edit icon and  you can edit the scene name, snapshot and tap on Save.

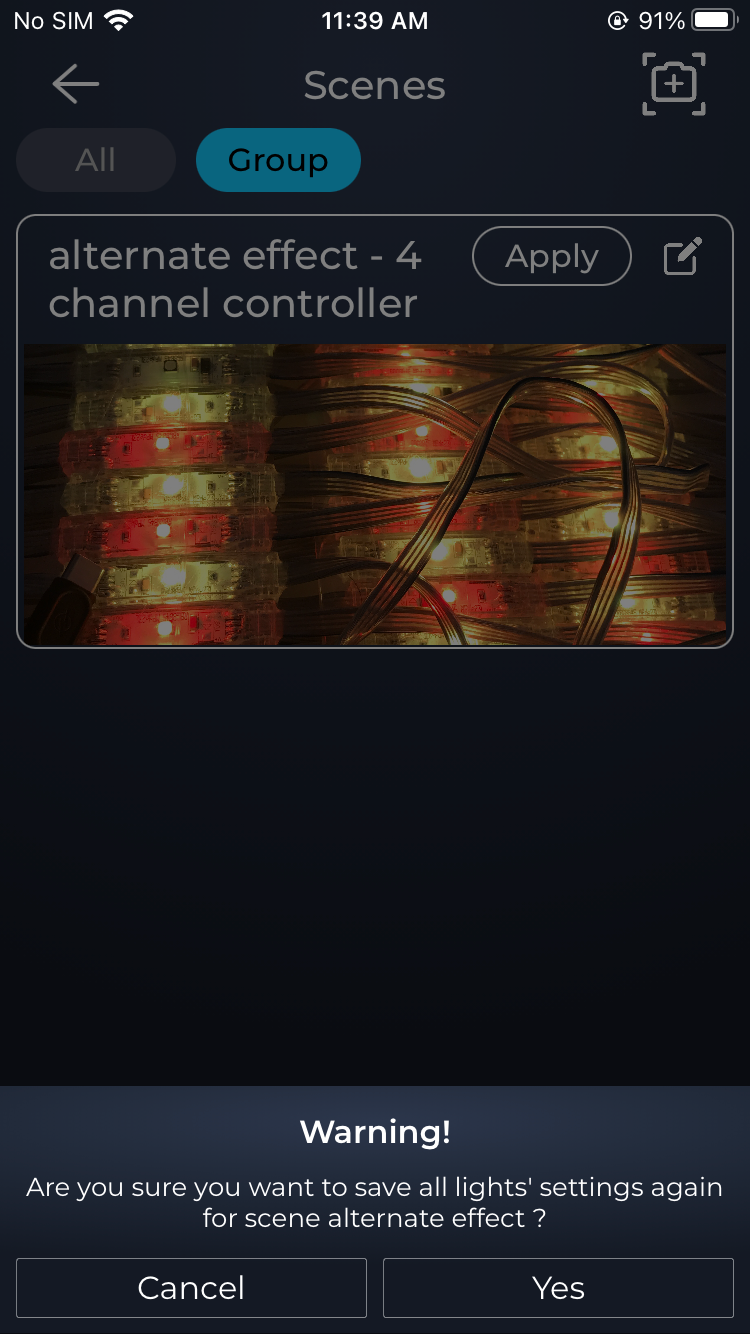

2. Resave a scene : To resave a scene means if you want the scene to be applied with another effect/colors follow the steps as mentioned earlier.

1. Apply colors/Effects using group level controls and then at the group level tap on scenes
2. Edit the scene and tap on Resave scene.
3. Tap on ‘Yes’
4. Now the scene will be saved with the recent change

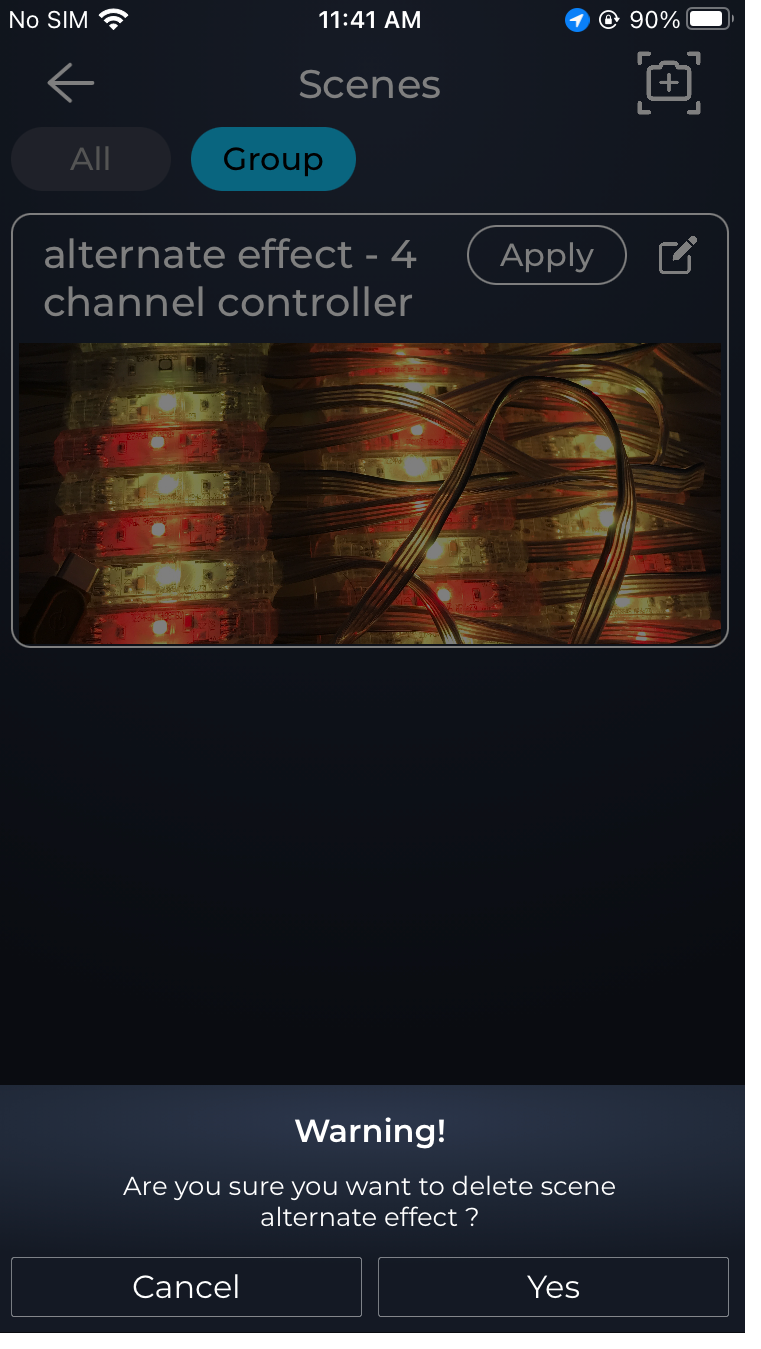

3. Delete a scene : Using the edit option, tap on delete. Tap ‘Yes’

---

If you have any questions, please reach out to us at [e-mail] and we'd be happy to help.
